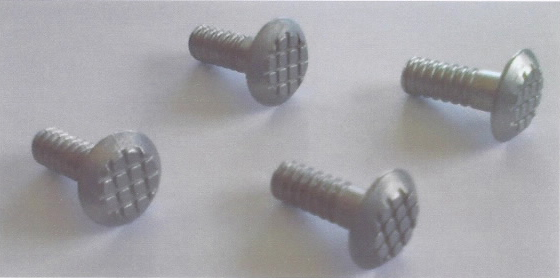

Brass and stainless steel demarcation and tactile paving studs

Brass and stainless steel tactile paving studs

Stainless steel & Brass tactile studs are easily detected by both sighted & visually impaired pedestrians & used to indicate the presence of pedestrian crossing or crossing points.  When off-set they are used to indicate the edge of the platforms at Railway stations, please note there is strict guidance for such use & details should be obtained from the site architect/engineer or the DETR "Guidance on the use of Tactile Paving Surfaces".  Installation is performed by simply drilling the surface & setting the stud in an epoxy resin.

Physical Properties

Head diameter: 25mm

Head height: 5mm

Stem Diameter: 11mm

Stem length: 32mm

Finish in stainless steel: Matt with "chequered plate" effect to help prevent slipping.

Finish in Brass: smooth antique brass

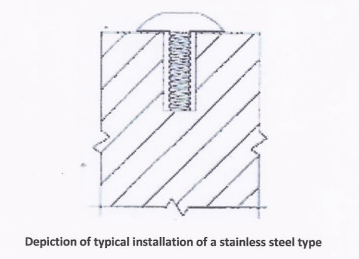

depiction of typical installation of a stainless steel stud

For further information contact us.
